Choosing UTV hitches starts with two numbers and one habit. The numbers: your receiver size, because 1 1/4 inch and 2 inch receivers take different attachments and are not interchangeable, and your machine's towing capacity from the owner's manual, because the lower of the hitch's rating and the machine's rating always governs. The habit: think of the hitch as more than a towing point. A receiver is the backbone of the whole accessory system, the one socket that tows a trailer on Saturday and runs a swappable cargo carrier on Sunday. Get the size and the ratings right, pick the connection type your trailers actually use, and the hitch becomes the most-used piece of steel on the machine.
Key Takeaways
- Receiver size comes first: 1 1/4 inch and 2 inch are different standards, and every future attachment depends on which one you run.
- The lower of the hitch's rating and the machine's published towing capacity is the limit; a stronger hitch never raises what the UTV can tow.
- Ball mounts serve standard trailer couplers; pintle connections tolerate rough ground better; the receiver itself runs the swappable attachments.
- Tongue weight is its own number: too little causes sway, too much overloads the rear, and the trailer's loading sets it.
What does a hitch actually add to a UTV?
A UTV without a hitch carries what fits in the box. A UTV with one moves what fits on a trailer: mulch and firewood across the property, feed trailers and water tanks across the pasture, a cart of stands and feed into ground a truck cannot reach. For most working machines the hitch multiplies the box several times over, and it does it with the machine you already own instead of a second vehicle.

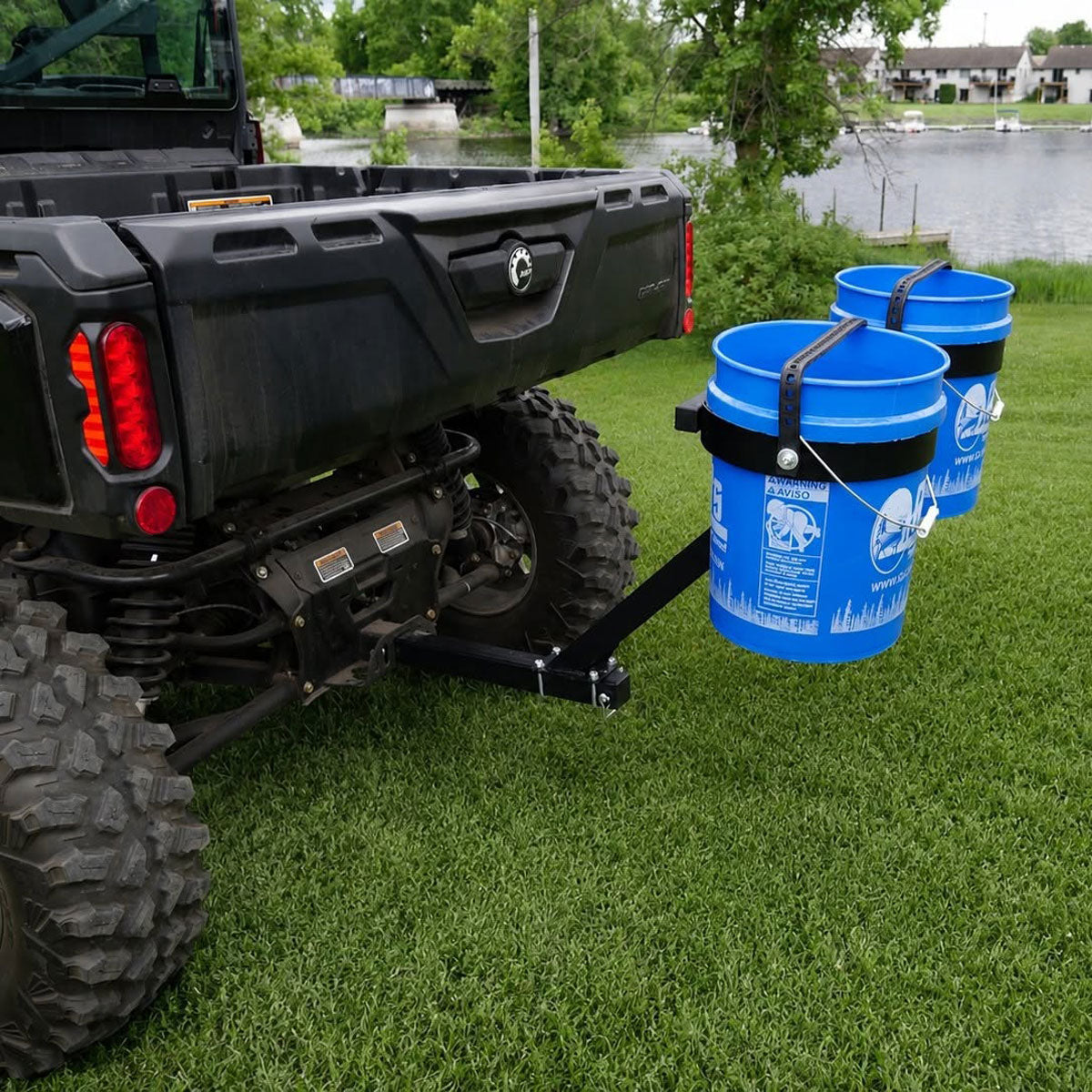

The less obvious half of the value is what the receiver does when nothing is being towed. That square tube is a standard socket, and it accepts receiver-based attachments: carriers, racks, and gear systems that slide in and out on a hitch pin. One hitch, and the machine converts between jobs in the driveway. That second role is why the hitch belongs first in the buying order, ahead of the racks it will eventually serve, a point we make at length in the machine setup guide.
1 1/4 inch or 2 inch: which receiver does your UTV need?
The receiver opening is a standard, and the two common sizes do not mix: a 1 1/4 inch attachment rattles uselessly in a 2 inch receiver, and a 2 inch attachment does not enter a 1 1/4 inch one. So the size decision is really a decision about everything you will ever slide into it.
The practical guidance: 1 1/4 inch receivers are common on ATVs and lighter machines and serve lighter-duty attachments; 2 inch is the standard shared with trucks, which matters more than it sounds, because a 2 inch receiver on the UTV can run ball mounts and attachments from the same wall of gear the pickup uses. If your machine already has a receiver, measure the opening before buying anything. If you are installing the hitch, choose the size with your attachment plans in mind and confirm what your machine supports on the UTV hitch product pages, where fitment is listed by model. Whichever size you land on, run it consistently; a mixed-size collection of attachments is how the right piece is always in the wrong socket.
Which connection type matches your towing?
Ball mounts
A ball mount slides into the receiver and carries the hitch ball that standard trailer couplers latch onto: utility trailers, small equipment trailers, the everyday towing most UTVs do. The ball size has to match the coupler, and the coupler will tell you what it wants; a mismatched ball is a loose connection dressed up as a secure one.
Pintle connections
A pintle setup replaces the ball-and-coupler with a hook-and-ring connection that tolerates articulation, the constant twisting a trailer does behind a machine crossing rutted fields and rough pasture. It is louder and less refined on smooth ground, which is the honest trade, and it is why farm and land-management towing leans pintle while recreational towing leans ball.
Beyond those two, the receiver's flexibility is the point: the same socket takes the ball mount, the pintle setup, and the non-towing attachments, which is why one well-chosen hitch replaces a collection of single-purpose hardware.
What ratings govern, and what is tongue weight?
Two ratings share the job, and the lower one always wins. The hitch's rating, from its product page, is what the steel can carry. The machine's towing capacity, from the manufacturer, is what the frame, brakes, and drivetrain can handle, and no hitch raises it. A heavier-rated hitch on a light machine buys margin in the steel, not permission in the load.
Tongue weight is the third number, and the one that causes the most trouble when ignored: it is the share of the trailer's weight pressing down on the hitch. Too little, from loading a trailer tail-heavy, is what makes a trailer sway; too much overloads the machine's rear. The NHTSA's towing guidance covers how tongue weight and ratings work together, and the fix is almost always in how the trailer is loaded, heavier toward the front, balanced side to side. None of it is complicated, and all of it is the operator's job every time the trailer is loaded, because the hitch secures the connection, not the judgment.
Where Herc fits
Herc Outdoors builds UTV hitches and ATV hitches in Pine City, Minnesota, along with the receiver-based attachments they anchor: designed, laser cut, welded, powder coated, and assembled under one roof by a working fabrication shop, and run on the crew's own machines before anything ships. Fitment is listed per product by make and model, ratings are on every page, and the whole line carries a 30 day try it policy and a 2 year warranty, with free U.S. shipping on orders over $100. The hitch is the piece everything else plugs into, which is exactly why it is worth buying once, in steel that holds.
Frequently Asked Questions
Does a stronger hitch increase what my UTV can tow?
No. The hitch's rating and the machine's published towing capacity are separate numbers, and the lower one governs. The manufacturer's towing capacity accounts for engine, brakes, suspension, and frame, none of which a hitch changes. A stronger hitch buys durability margin, not towing capacity.
Can a UTV tow a trailer on public roads?
It depends entirely on where you are. Some states and municipalities allow UTVs on certain roads when equipped with the required lighting, mirrors, registration, and insurance, and trailer rules vary again on top of that. Check your state and local regulations before towing on any public road; the fine costs more than the shortcut saves.
Can one hitch run attachments besides trailers?
Yes, and it should. The receiver is a standard socket, so cargo carriers and other receiver-based attachments slide into the same opening the ball mount uses, swapping on a hitch pin. That is the case for choosing your receiver size deliberately: it decides your attachment options for as long as you own the machine.
How do I find my UTV's towing capacity?
The owner's manual is the authority, and many machines also state it on a frame or door-area label. Use the number for your exact model and year, not the number a forum remembers for a similar machine, and if the manual and a listing disagree, the manual wins.
One socket, most of the work
Pick the receiver size for the attachments you will actually run, respect the lower of the two ratings, match the connection to your trailers, and load for tongue weight. Do that once and the hitch disappears into the routine, which is what good steel does: it stops being a decision and starts being the socket everything useful plugs into.
